B105.0012.S.04
Toolholder
Material number B1050012S04

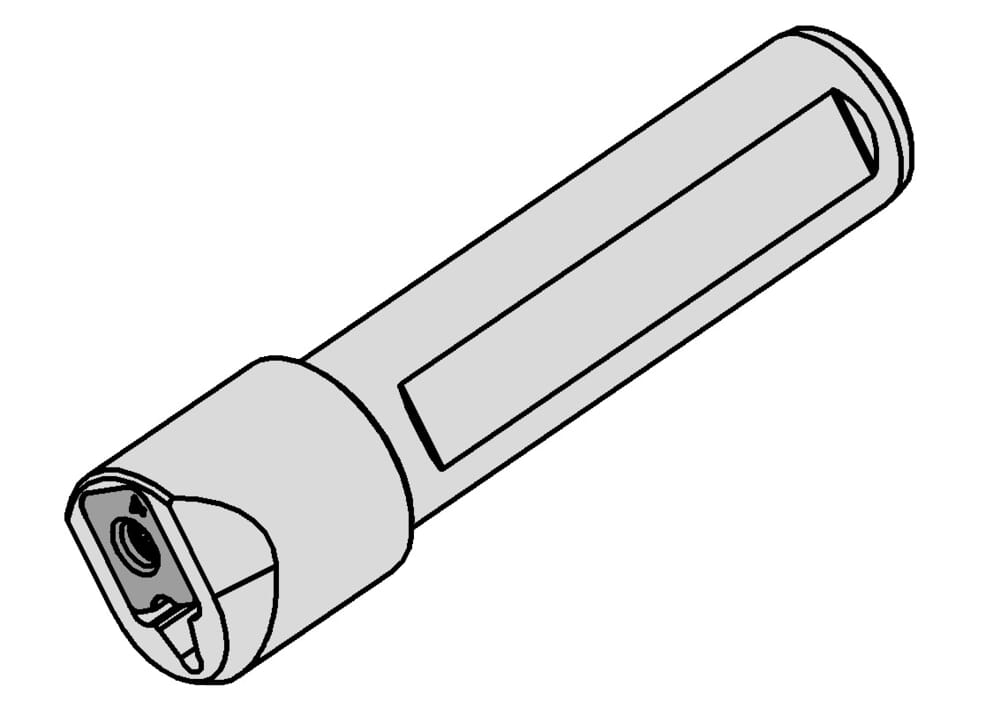

HORN Toolholder B105.0012.S.04 for Turning
Shank, clamping diameter (d)
12 mm
ISO_CCTMS
ZYL23G1200$$$$
DIN_CCTMS
ZYL01202315
Katalog_CCTWS
105124
DIN_CCTWS
HORN-10512495N
ISO_CCTWS
HORN105124$95N$$$$$
Width of blank (b)
6.4 mm
Length of clamping surface(s) (l4)
50 mm
Head diameter (d1)
20 mm
Height clamping surface(s) (h)
11 mm
Total length (without cutting insert) (l1)
80 mm
Adjustment dimension (f1)
4.9 mm
| Downloads | |
|---|---|
| B105_0012_S_04-DXF.DXF | Download |
| B105_0012_S_04-STP.STP | Download |
| B105_0012_S_04-ISO.XML | Download |
| B105_0012_S_04-DIN.XML | Download |
| Download all files | |
