B105.0022.S.03
Toolholder
Material number B1050022S03

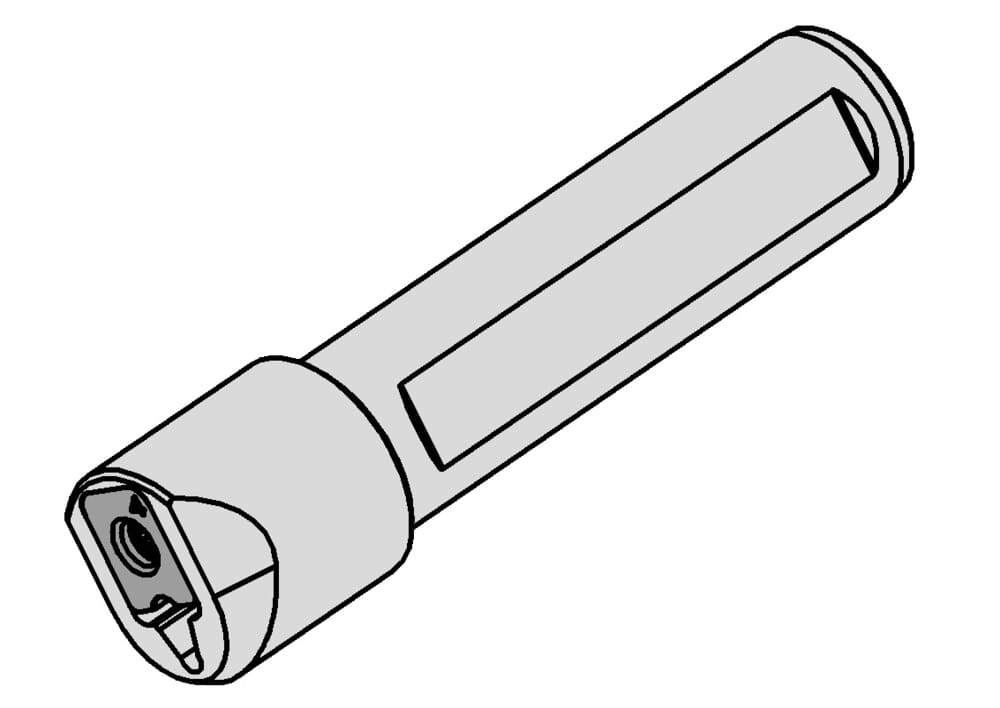

HORN Toolholder B105.0022.S.03 for Turning
Shank, clamping diameter (d)
22 mm
ISO_CCTMS
ZYL23G2200$$$$
Katalog_CCTWS
105123
DIN_CCTWS
HORN-10512395N
ISO_CCTWS
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
Length of clamping surface(s) (l4)
55 mm
Head diameter (d1)
22 mm
Height clamping surface(s) (h)
20 mm
Total length (without cutting insert) (l1)
90 mm
Adjustment dimension (f1)
4.3 mm
| Downloads | |
|---|---|
| B105_0022_S_03-ISO.XML | Download |
| B105_0022_S_03-DIN.XML | Download |
| B105_0022_S_03-DXF.DXF | Download |
| B105_0022_S_03-STP.STP | Download |
| Download all files | |
