B105.0025.S.04
Toolholder
Material number B1050025S04

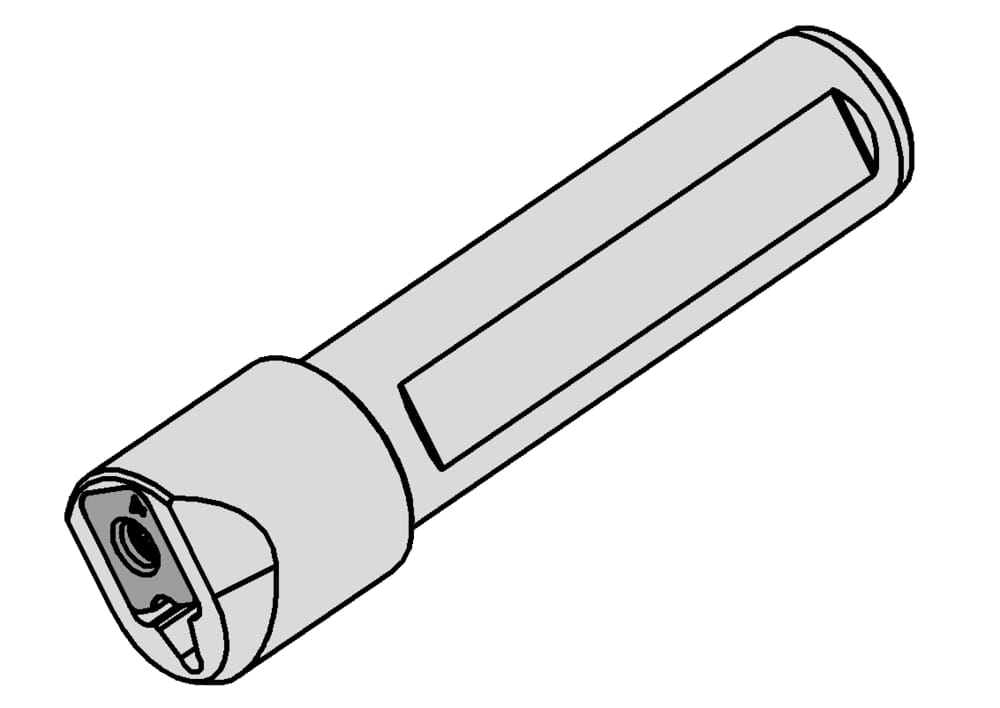

HORN Toolholder B105.0025.S.04 for Turning
Shank, clamping diameter (d)
25 mm
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502315
Katalog_CCTWS
105124
DIN_CCTWS
HORN-10512495N
ISO_CCTWS
HORN105124$95N$$$$$
Width of blank (b)
6.4 mm
Length of clamping surface(s) (l4)
55 mm
Head diameter (d1)
25 mm
Height clamping surface(s) (h)
23 mm
Total length (without cutting insert) (l1)
100 mm
Adjustment dimension (f1)
4.9 mm
| Downloads | |
|---|---|
| B105_0025_S_04-DXF.DXF | Download |
| B105_0025_S_04-STP.STP | Download |
| B105_0025_S_04-ISO.XML | Download |
| B105_0025_S_04-DIN.XML | Download |
| Download all files | |
