B116.0016.01
Toolholders
Material number B116001601

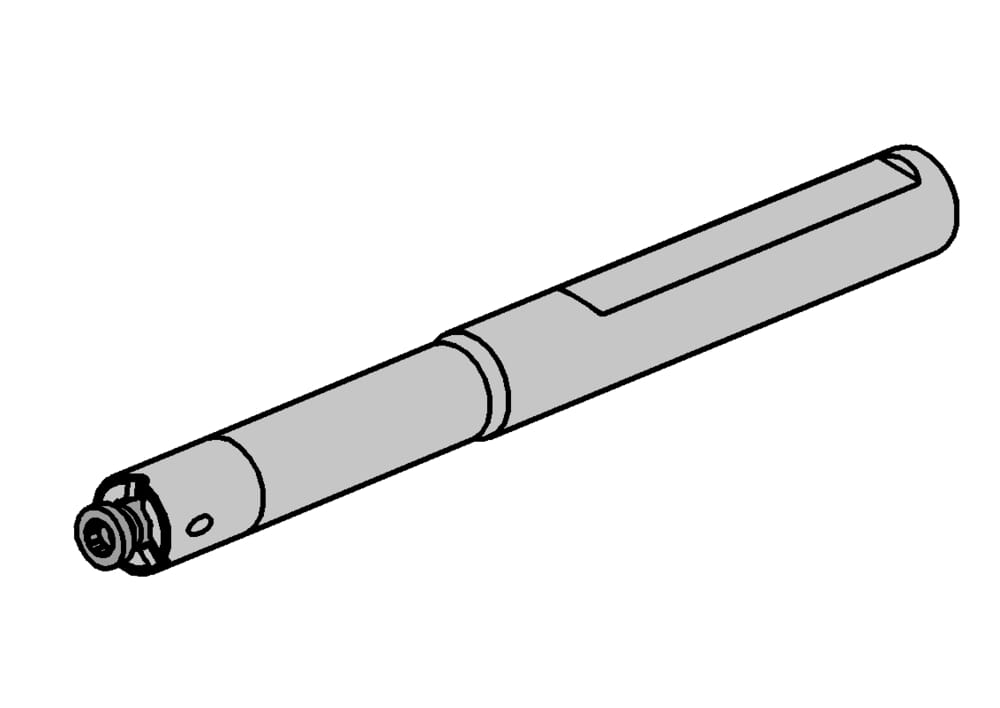

HORN Toolholders B116.0016.01 for Turning
Neck diameter (d1)
11 mm
ISO_CCTMS
ZYL50G1600$$$$
DIN_CCTMS
ZYL01605015
Katalog_CCTWS
116110R;116110L
DIN_CCTWS
HORN-11611084R;HORN-11611084L
ISO_CCTWS
HORN116110$84R$$$$$;HORN116110$84L$$$$$
Shank, clamping diameter (d)
16 mm
Height clamping surface(s) (h)
15 mm
Total length (including cutting insert) (l1)
130 mm
Outcropping, neck, working length (l2)
40 mm
| Downloads | |
|---|---|
| B116_0016_01-STP.STP | Download |
| B116_0016_01-ISO.XML | Download |
| B116_0016_01-DIN.XML | Download |
| B116_0016_01-DXF.DXF | Download |
| Download all files | |
