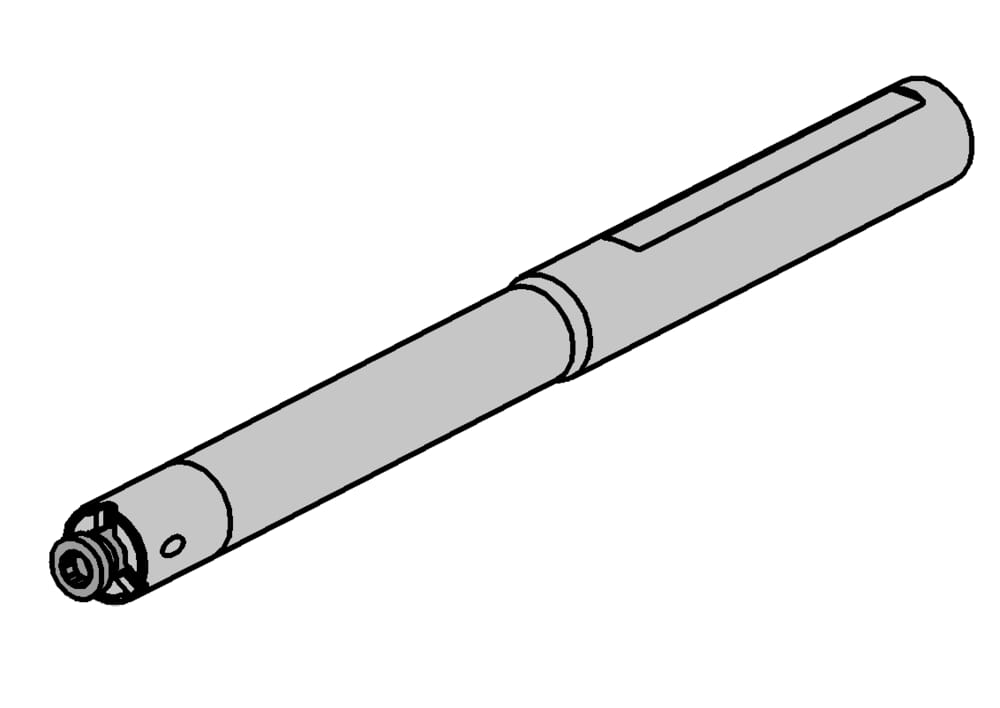

B116.0016.2.03
Toolholder
Material number B1160016203
HORN Toolholder B116.0016.2.03 for Turning
Outcropping, neck, working length (l2)
80
mm
Total length (including cutting insert) (l1)
150
mm
Height clamping surface(s) (h)
14
mm
Shank, clamping diameter (d)
16
ISO_CCTWS
HORN116110$84R$$$$$;HORN116110$84L$$$$$
DIN_CCTWS
HORN-11611084R;HORN-11611084L
Katalog_CCTWS
116110R;116110L
DIN_CCTMS
ZYL01602315
ISO_CCTMS
ZYL23G1600$$$$
Neck diameter (d1)
11
mm
| Downloads | |
|---|---|
| B116_0016_2_03_20171121_220057803.STP | Download |
| B1160016203.DXF | Download |
| Download all files | |
