CCGT120402N.HS HD08
Insert
Material number CCGT120402NHSHD08

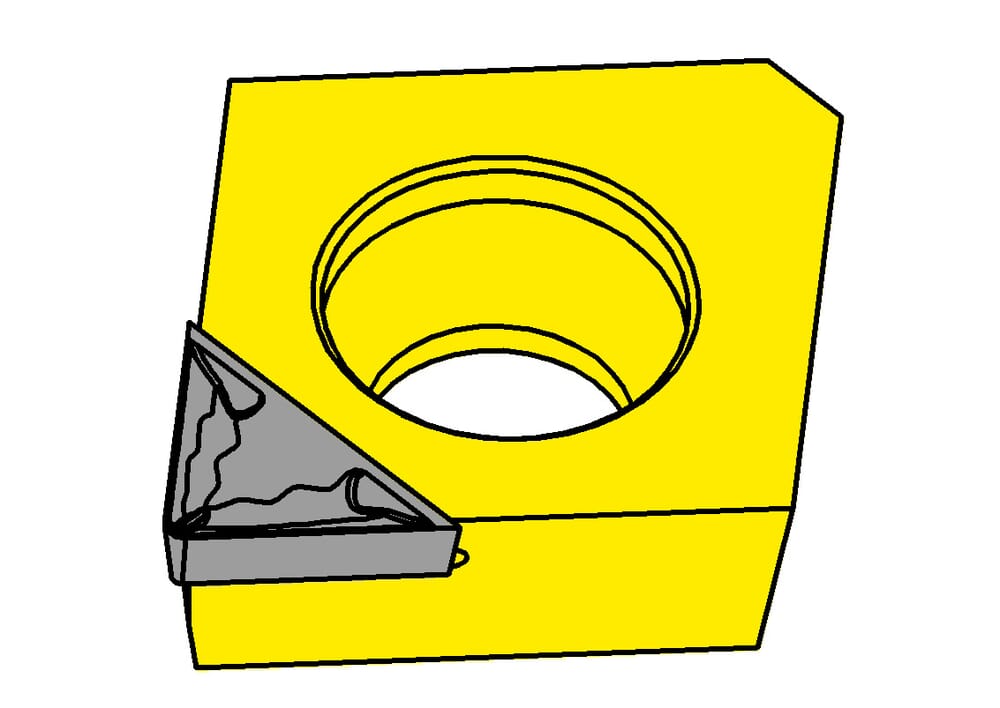

HORN Insert CCGT120402N.HS HD08 for Turning
Bore diameter (d2)
5.5 mm
Free angle (α)
7 °
ISO_SSC
ISO$CC1204023NB$$02
Corner radius (r)
0.2 mm
Cutting insert height, Cutting insert thickness (s)
4.76 mm
Effective cutting length (l1)
4 mm
Inner circle diameter (d)
12.7 mm
