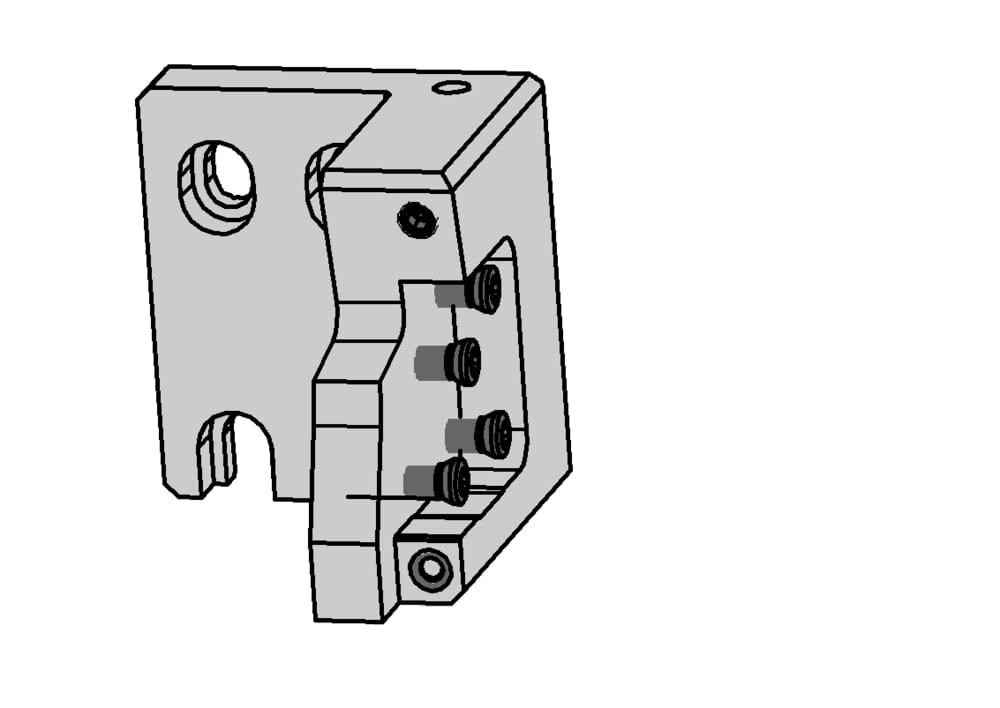

L940.X842.5862.R.IK

Stechhaltestück

IK_GENERELL.EPS

ABSTECHEN_20210506_153854505.EPS

AUSSEN_EINSTECHEN.EPS

Material number L940X8425862RIK

HORN Stechhaltestück L940.X842.5862.R.IK for Turning

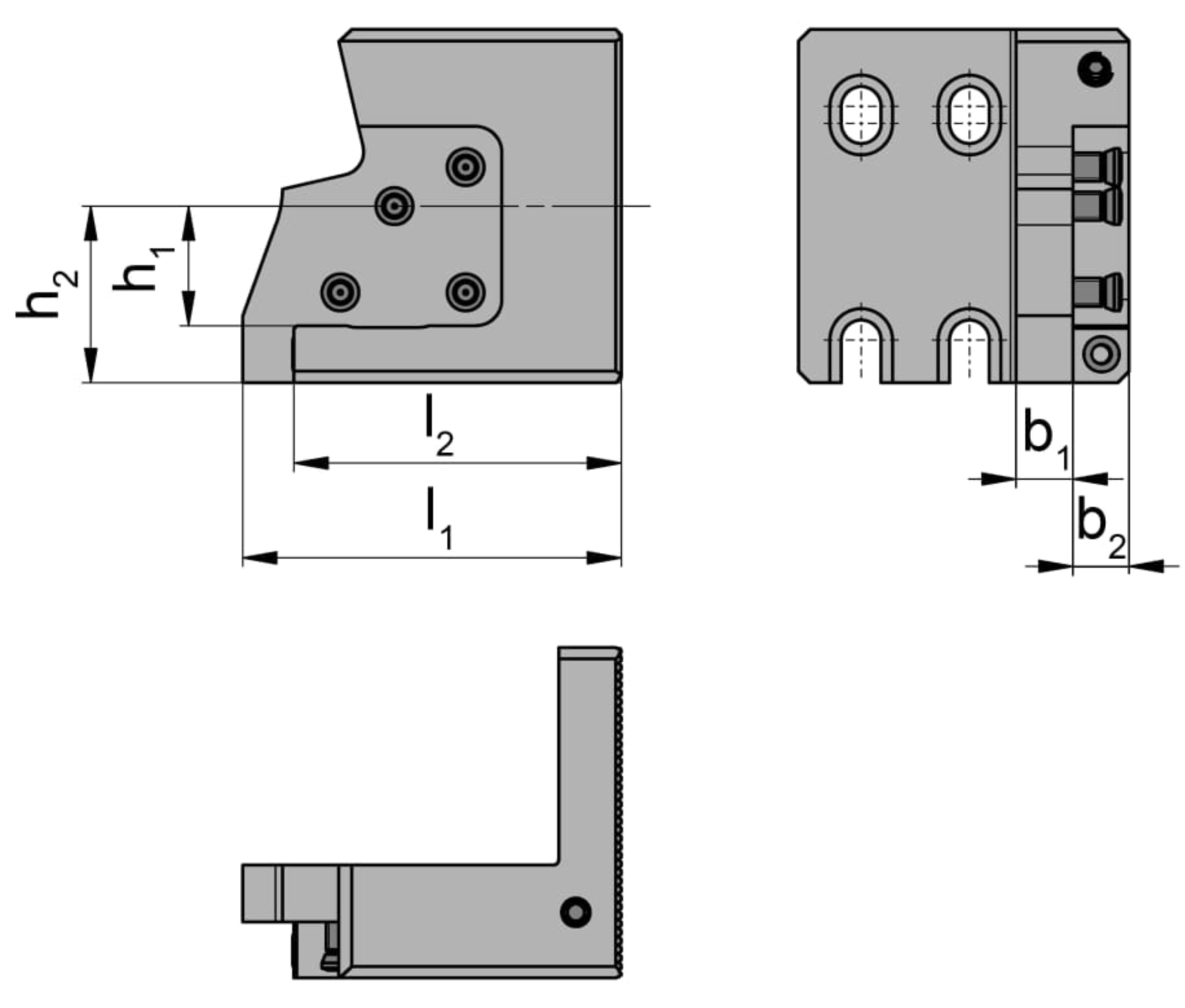

Technical instructions

Cassette system from the middle (h1)

21 mm

Cutting insert width (l2)

57.5 mm

System cassette outer edge to grooving holder (b2)

9.8 mm

System grooving holder to system cassette (b1)

10 mm

Dimension center to outer edge holder (h2)

31 mm

ISO_CCTWS

HORN84200193$$;HORN84200293$$

DIN_CCTWS

HORN-84200193;HORN-84200293

Katalog_CCTWS

842001;842002

Katalog_CCTMS

Index Traub

Total length (l1)

66.5 mm

606.0060.00 IG35

606.0060.00 IG35

insert

606006000IG35

ZAEHNEZAHL_Z6.EPS

TRENNFRAESEN.EPS

VOLLRADIUS_NUT.EPS

030.3509.T15P

screw

0303509T15P

312.0080.15 TN32

312.0080.15 TN32

Inserts

312008015TN32

020.22.10.46

driving collar set

020221046

313.1308.30 EG55

313.1308.30 EG55

insert

313130830EG55

VOLLRADIUS_NUT.EPS

TRENNFRAESEN.EPS

ZAEHNEZAHL_Z3.EPS

020.0022.40.30

Flange

02000224030

DM50.GK040.HK63.150

DM50.GK040.HK63.150

Milling arbour

DM50GK040HK63150

SCHAFTFORM_HSK_A.EPS
