LB110.00C6.22.1.02
Toolholder
Material number LB11000C622102

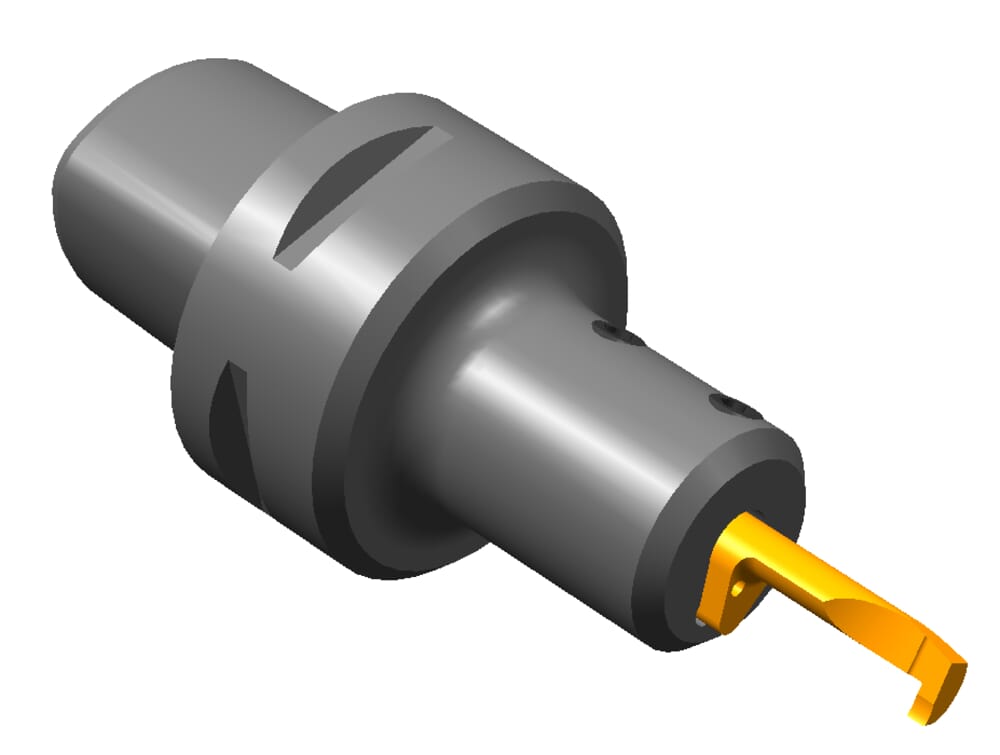

HORN Toolholder LB110.00C6.22.1.02 for Turning

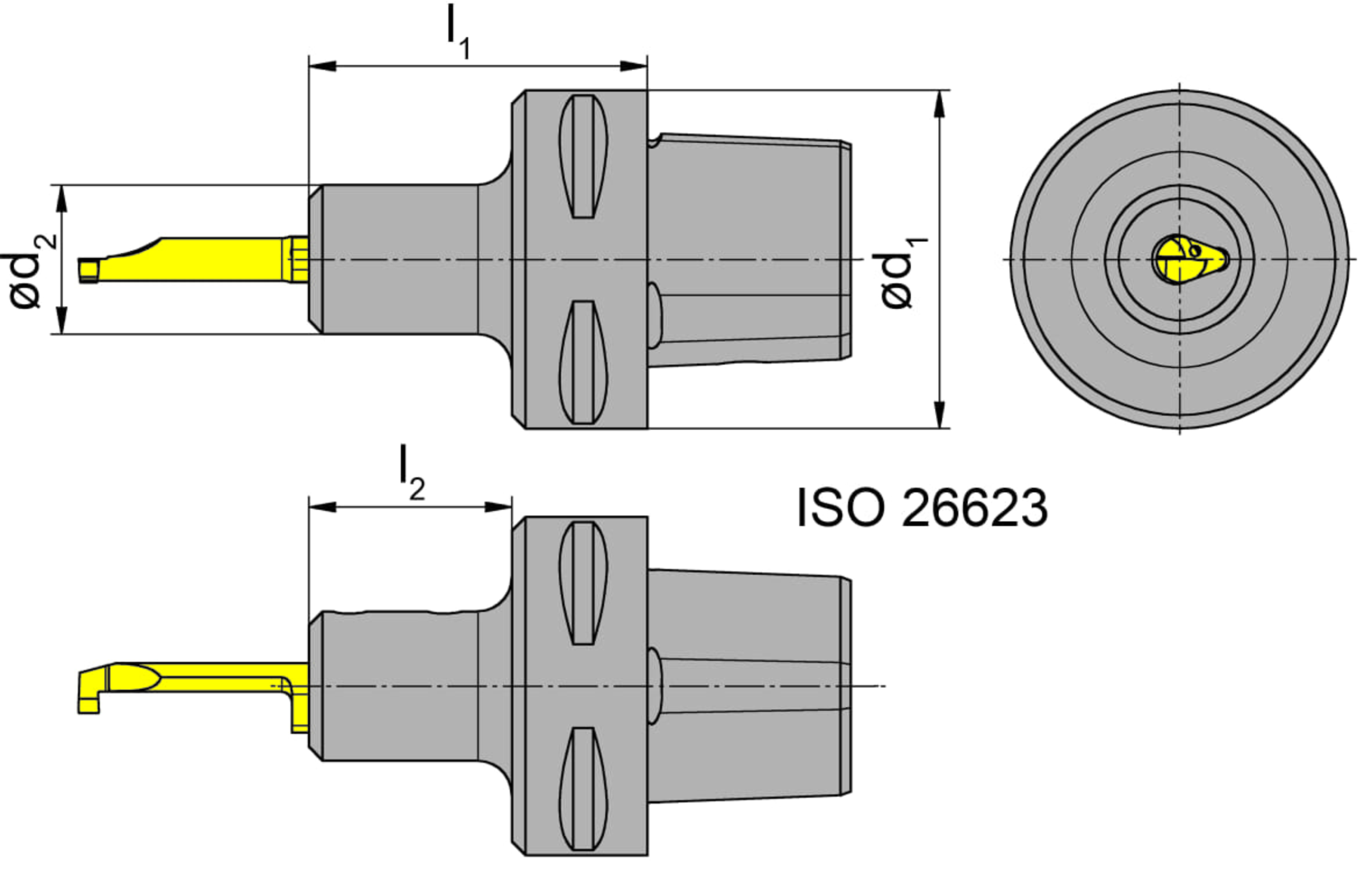

Bore diameter rotate (d1)
63
mm
Length from bore (l1)
52
mm
Working length, Extension length (l2)
30
mm
ISO_CCTWS
HORN110260$95N$$$$$
DIN_CCTWS
HORN-11026095N
Katalog_CCTWS
110260
DIN_CCTMS
CCS06300195
ISO_CCTMS
CCS01C0630$$$$
Neck diameter (d2)
22
mm
| Downloads | |
|---|---|
| LB11000C622102_20210707_140831013.DXF | Download |
| LB11000C622102.STP | Download |
| Download all files | |
