N105.SQ.0608.2.B1 AN25
Insert
Material number N105SQ06082B1AN25

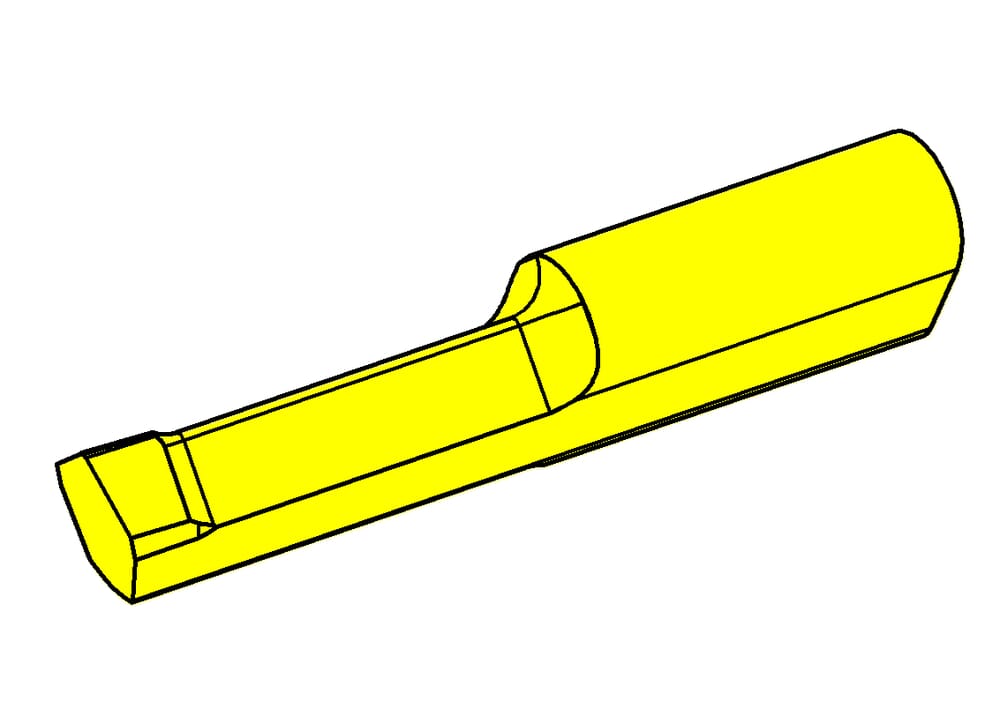

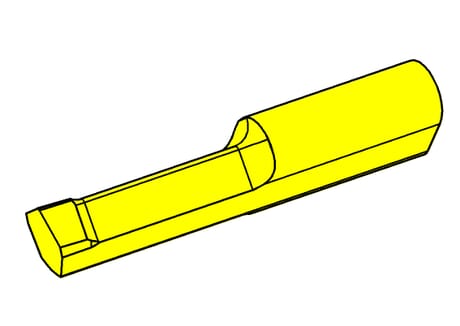

HORN Insert N105.SQ.0608.2.B1 AN25 for Broaching

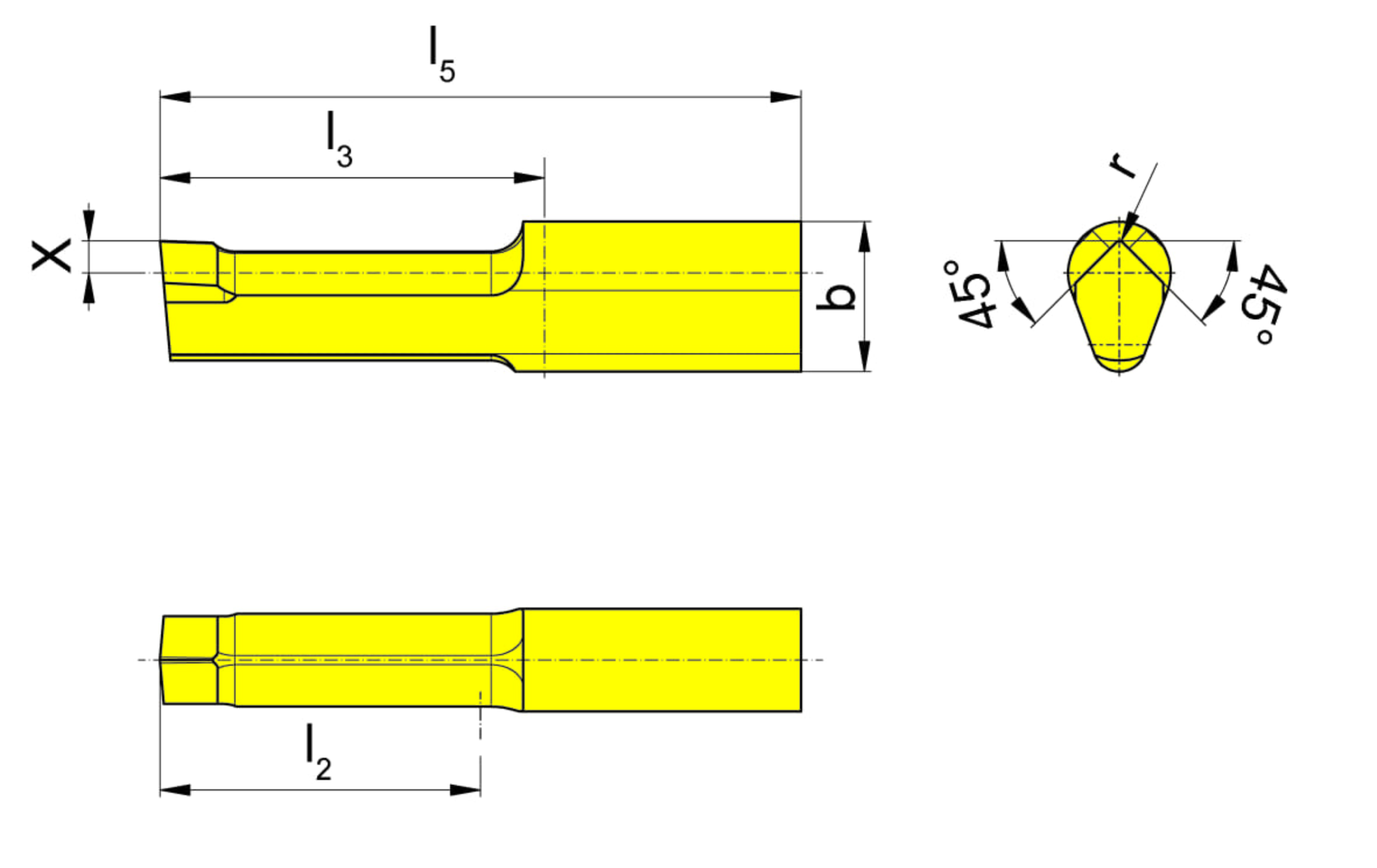

Top radius (r)
0.2 mm
Pilot diameter (Grundbohrung)
0.1 mm
Cutting height (X)
1.5 mm
Width of blank (b)
7 mm
Key range minimum (SW)
6 mm
Key range maximum (SW)
8 mm
ISO_SSC
HORN105125$85N$$$$$
Katalog_SSC
105125
Effective cutting length (l2)
15 mm
Total length (l5)
30 mm
Extension length (l3)
18 mm
| Downloads | |
|---|---|
| N105SQ06082B1_20230113_224601216.STP | Download |
| N105SQ06082B1.DXF | Download |
| Download all files | |
