R105.1819.3.4 TI25
Inserts
Material number R105181934TI25

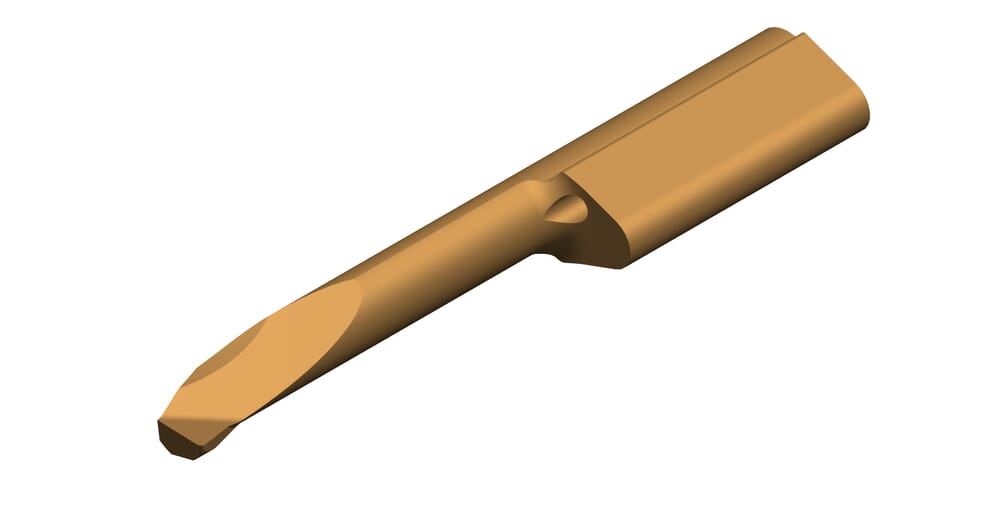

HORN Inserts R105.1819.3.4 TI25 for Turning
Smallest bore diameter (Dmin)
4
mm
Total length (l5)
35
mm
Setting range radial (f)
1.9
mm
Neck diameter (d)
2.9
mm
Katalog_SSC
105124
DIN_SSC
HORN-10512495N
ISO_SSC
HORN105124$95N$$$$$
Width of blank (b)
6.4
mm
Maximum depth of groove (tmax)
0.3
mm
Head size (a)
3.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
20
mm
| Downloads | |
|---|---|
| R105181934_20210626_041928995.DXF | Download |
| R105181934_20210630_145620793.STP | Download |
| Download all files | |
