R105.1823.1.H.5 TH35
Insert
Material number R10518231H5TH35

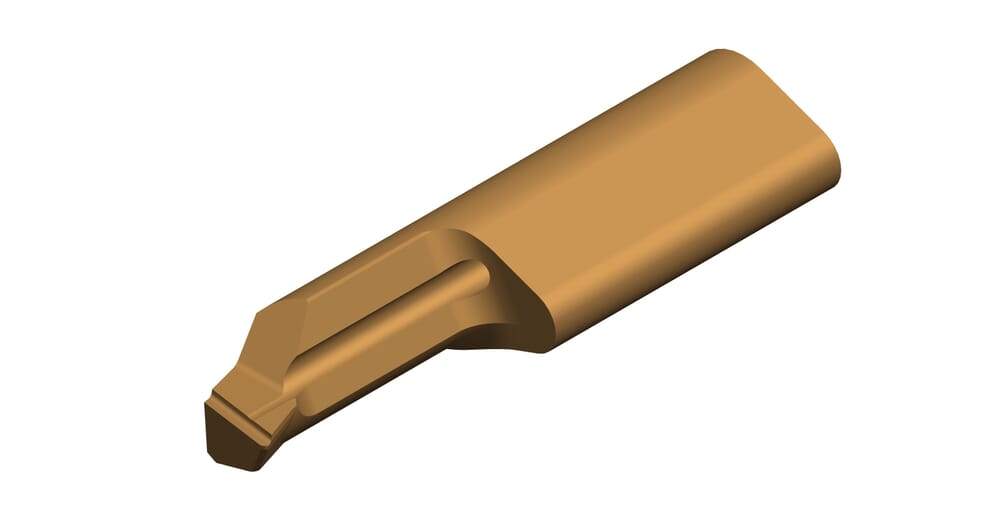

HORN Insert R105.1823.1.H.5 TH35 for Turning
Smallest bore diameter (Dmin)
5
mm
Total length (l5)
25
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
4
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.5
mm
Head size (a)
4.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
10
mm
| Downloads | |
|---|---|
| R10518231H5_20241217_112805839.STP | Download |
| R10518231H5_20210626_042334859.DXF | Download |
| Download all files | |
