R105.1840.7.7.2 TI25
Inserts
Material number R1051840772TI25

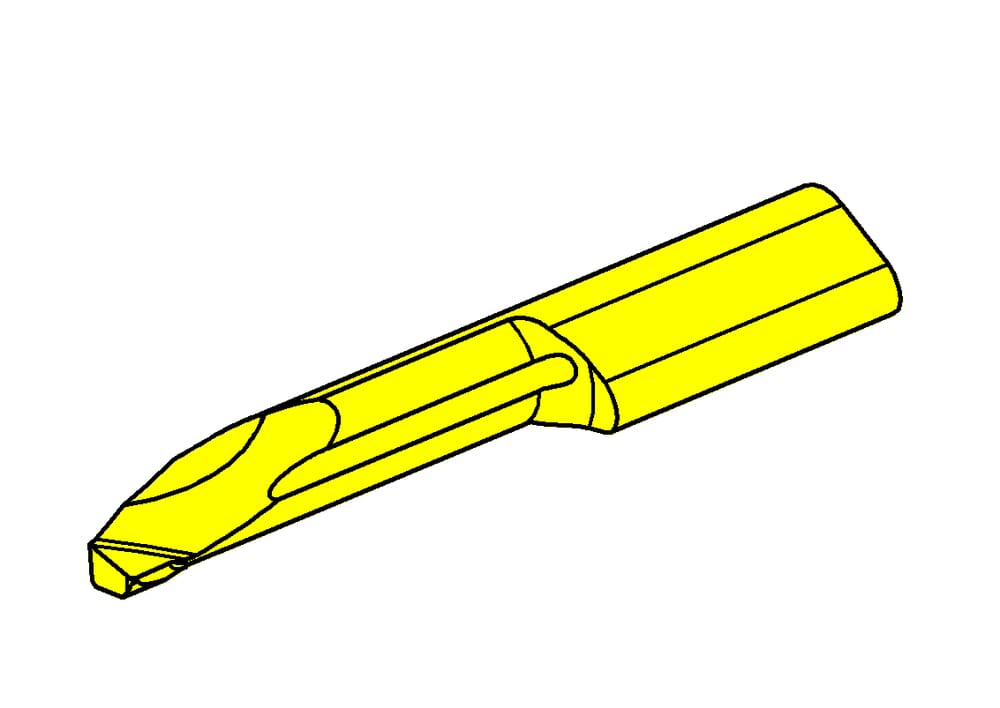

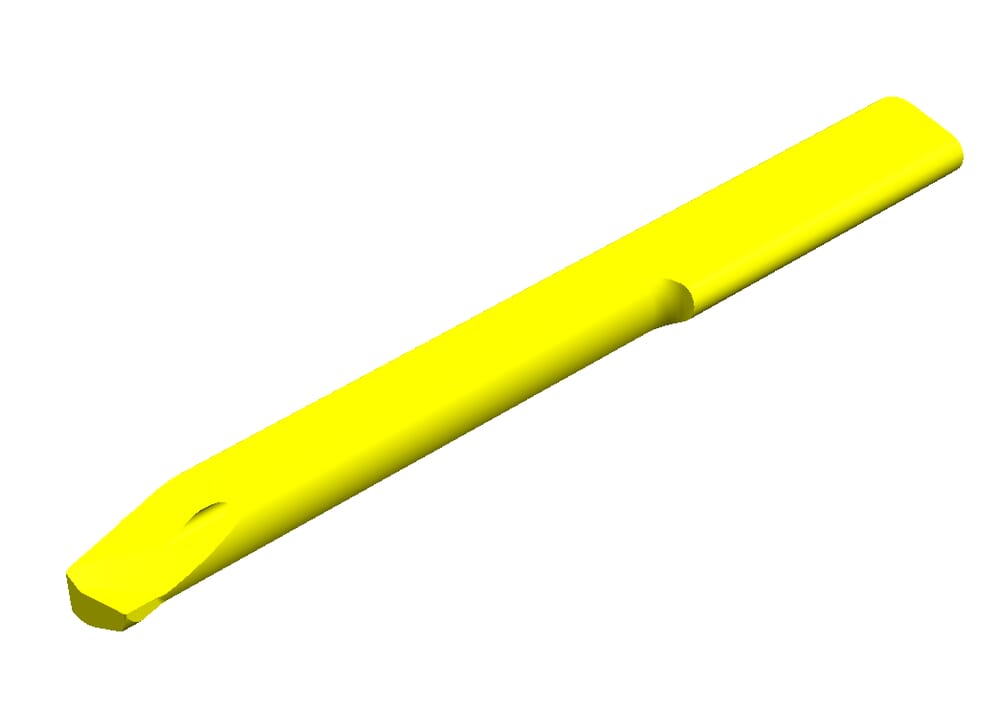

HORN Inserts R105.1840.7.7.2 TI25 for Turning

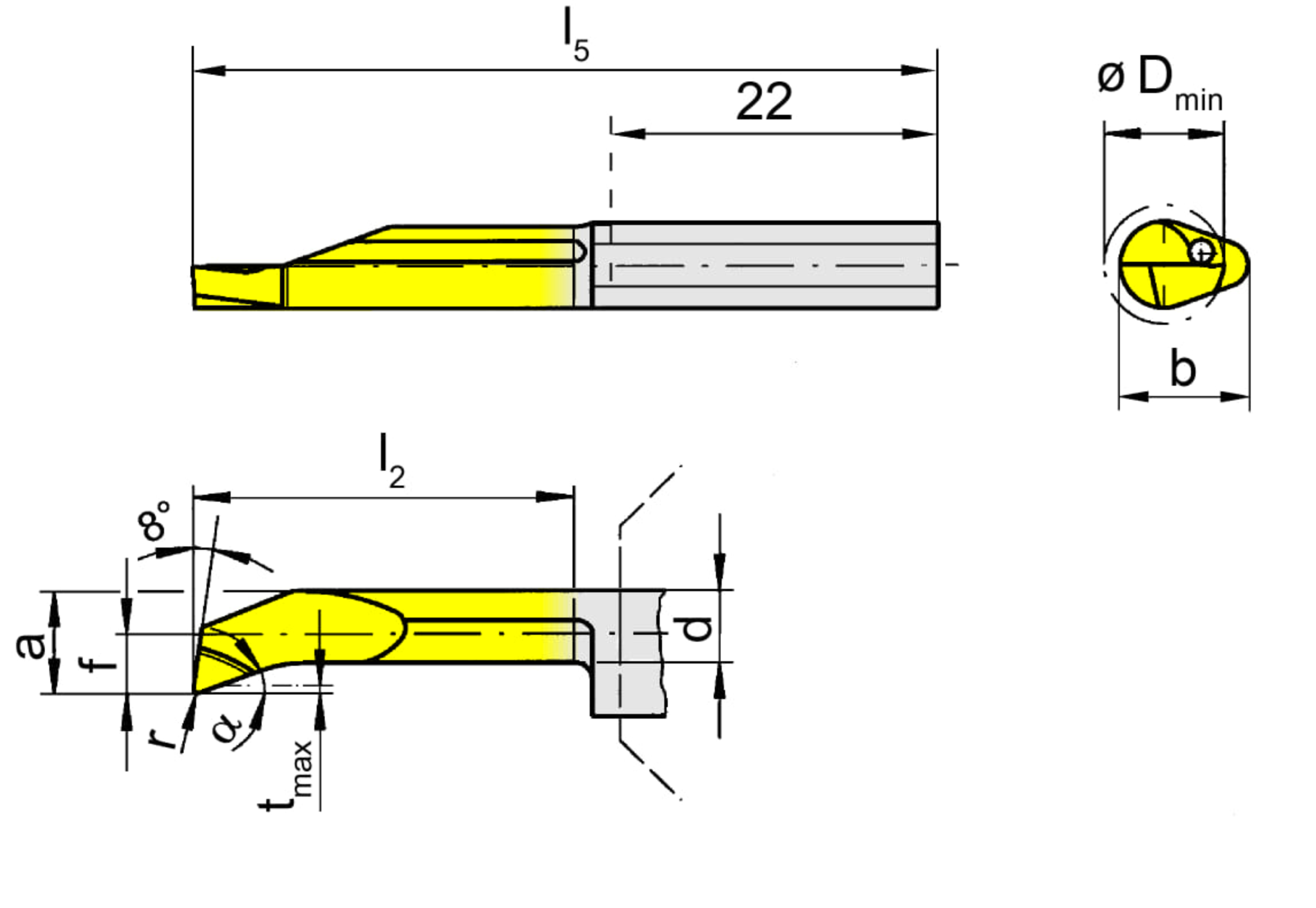

Width of blank (b)
7
mm
Smallest bore diameter (Dmin)
6.8
mm
Total length (l5)
65
mm
Setting range radial (f)
4
mm
Neck diameter (d)
5.4
mm
Katalog_SSC
105225
DIN_SSC
HORN-10522595N
ISO_SSC
HORN105225$95N$$$$$
Form free angle (α)
21
°
Maximum depth of groove (tmax)
0.3
mm
Head size (a)
6.4
mm
Top radius (r)
0.1
mm
Neck length (l2)
40
mm
| Downloads | |
|---|---|
| R1051840772_20210626_194422979.DXF | Download |
| R1051840772_20210630_174153104.STP | Download |
| Download all files | |
