Material number R110182996EG35

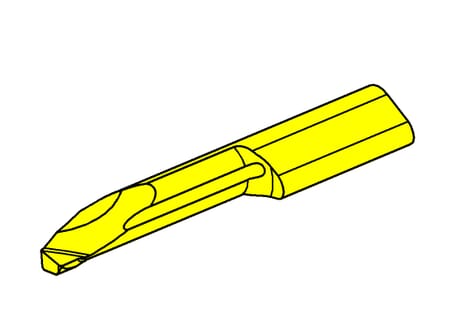

HORN Insert R110.1829.9.6 EG35 for Turning

Technical instructions

Katalog_SSC

110260

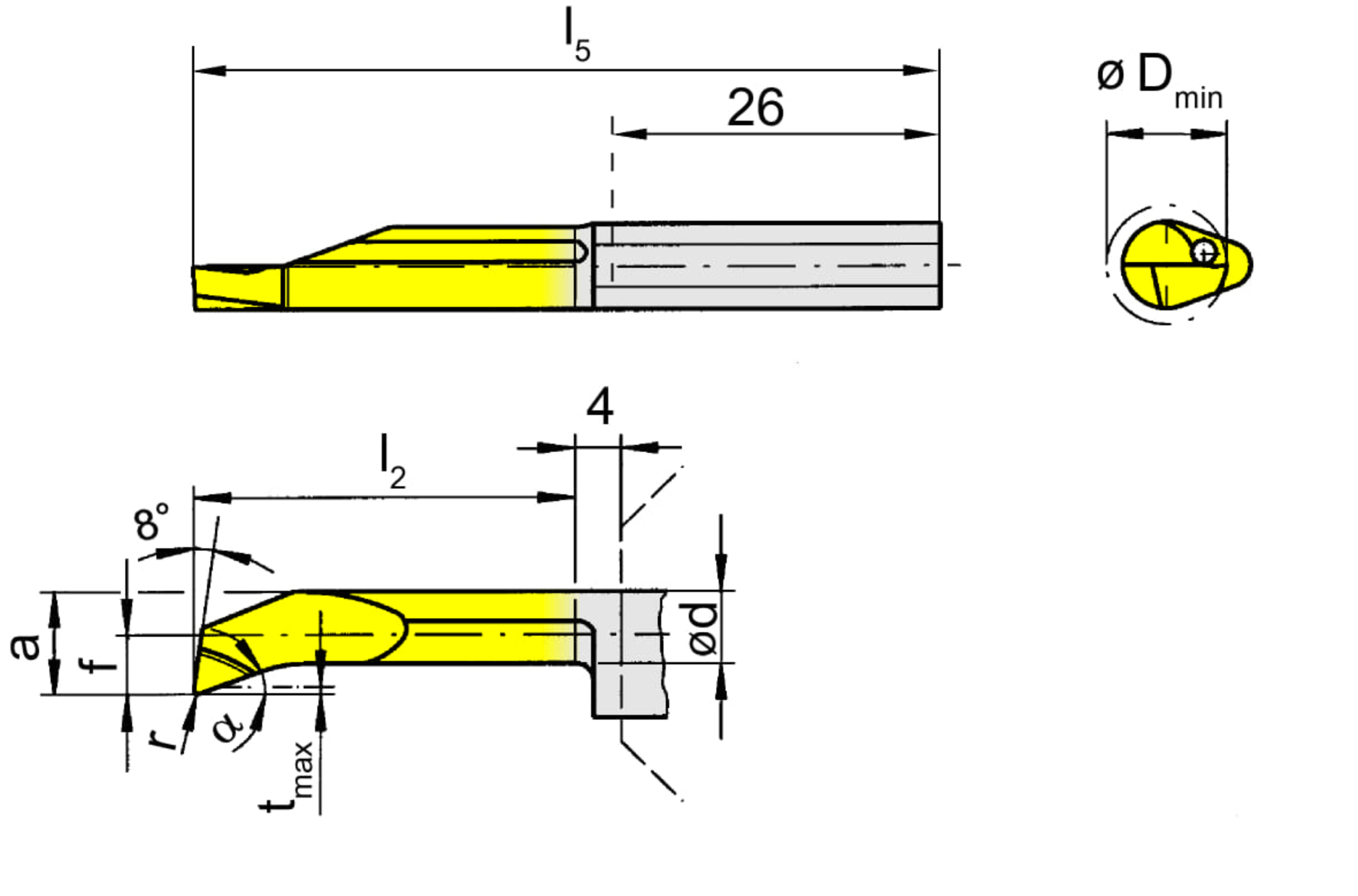

Smallest bore diameter (Dmin)

6 mm

Total length (l5)

80 mm

Setting range radial (f)

2.9 mm

Neck diameter (d)

4.8 mm

Neck length (l2)

50 mm

ISO_SSC

HORN110260$95N$$$$$

Maximum depth of groove (tmax)

0.5 mm

Head size (a)

5.7 mm

Free angle (α)

21 °

Top radius (r)

0.2 mm
