R114.VR20.H0.C HD03
Insert
Material number R114VR20H0CHD03

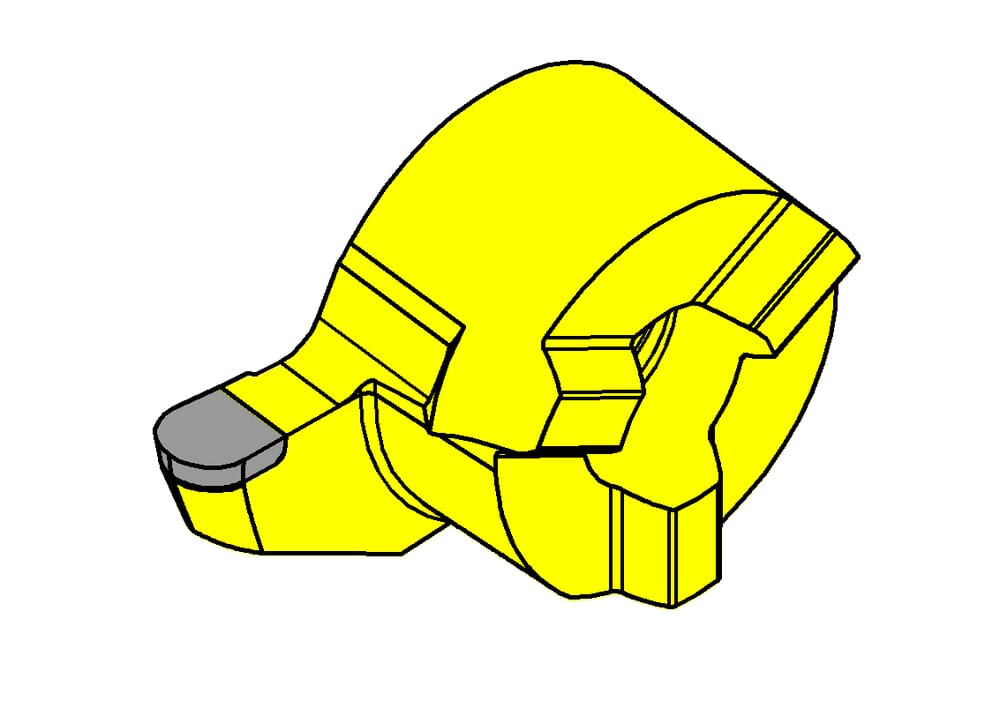

HORN Insert R114.VR20.H0.C HD03 for Turning

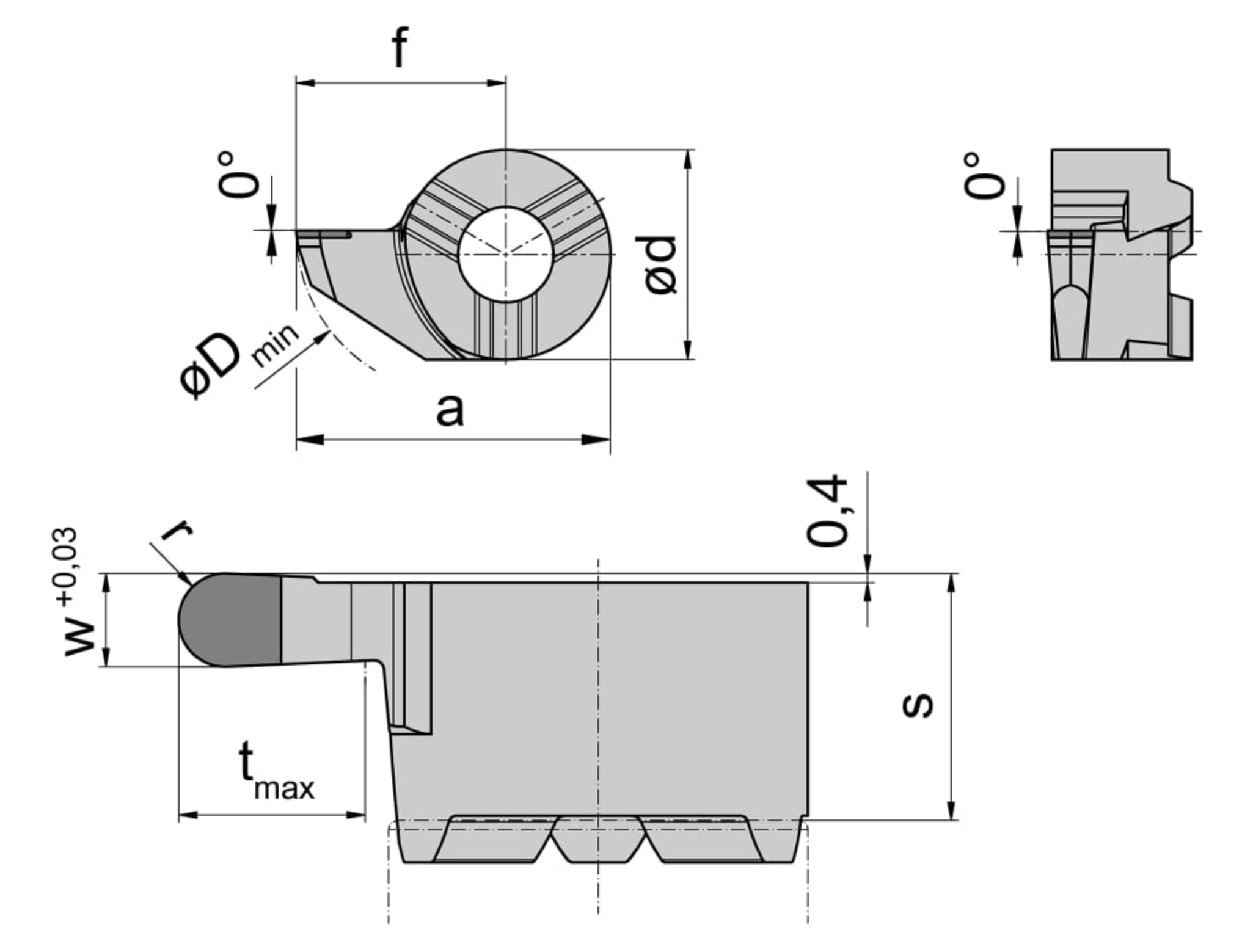

Smallest bore diameter (Dmin)
14
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
9
mm
Setting range radial (f)
9
mm
Width of groove (w)
2
mm
Katalog_SSC
114090R
DIN_SSC
HORN-11409084R
ISO_SSC
HORN114090$84R$$$$$
Full radius (r)
1
mm
Maximum depth of groove (tmax)
4
mm
Head size (a)
13.5
mm
| Downloads | |
|---|---|
| R114VR20H0C_20230113_213927689.STP | Download |
| R114VR20H0C.DXF | Download |
| Download all files | |
