RNK274.0840.1.4.04.IK

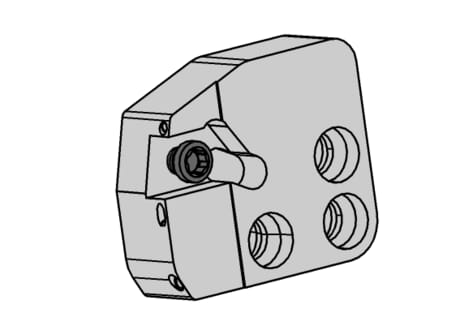

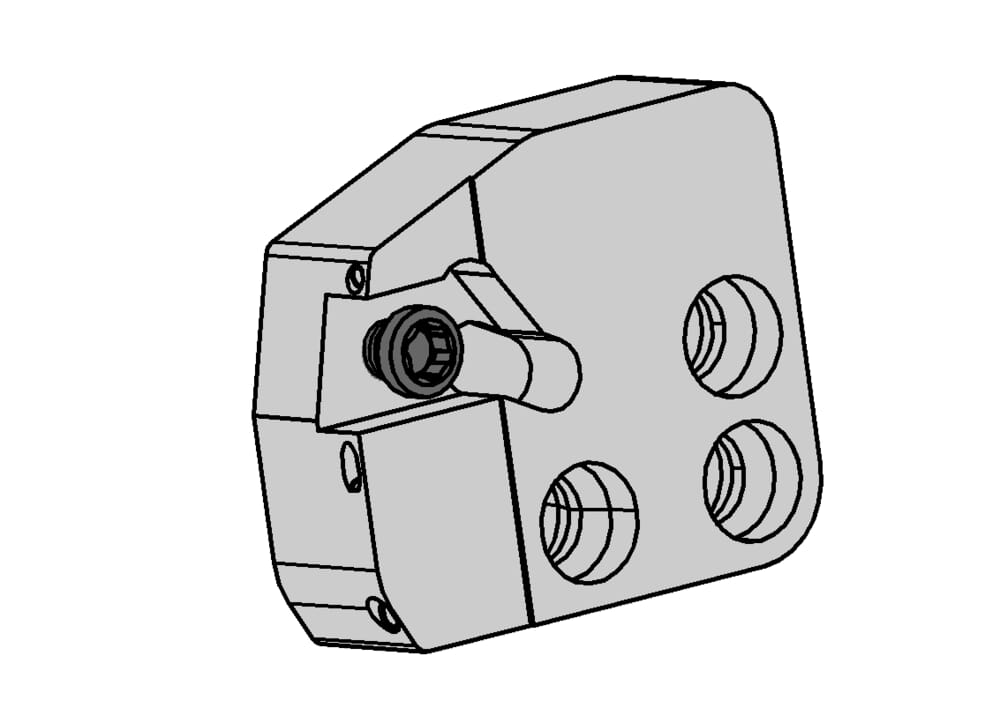

Cassette type K840 for insert HORN type 274

Material number RNK27408401404IK

HORN Cassette type K840 for insert HORN type 274 RNK274.0840.1.4.04.IK for Turning

Technical instructions

Plating seat size (Größe)

Katalog_CCTMS

840001;840002

ISO_CCTMS

HORN84000193$$;HORN84000293$$

DIN_CCTMS

HORN-84000193;HORN-84000293

Katalog_CCTWS

274040R

DIN_CCTWS

HORN-274040000R

ISO_CCTWS

HORN274040000R$$$$$

adjustment-dimension-of-system-cassette-met

10 mm

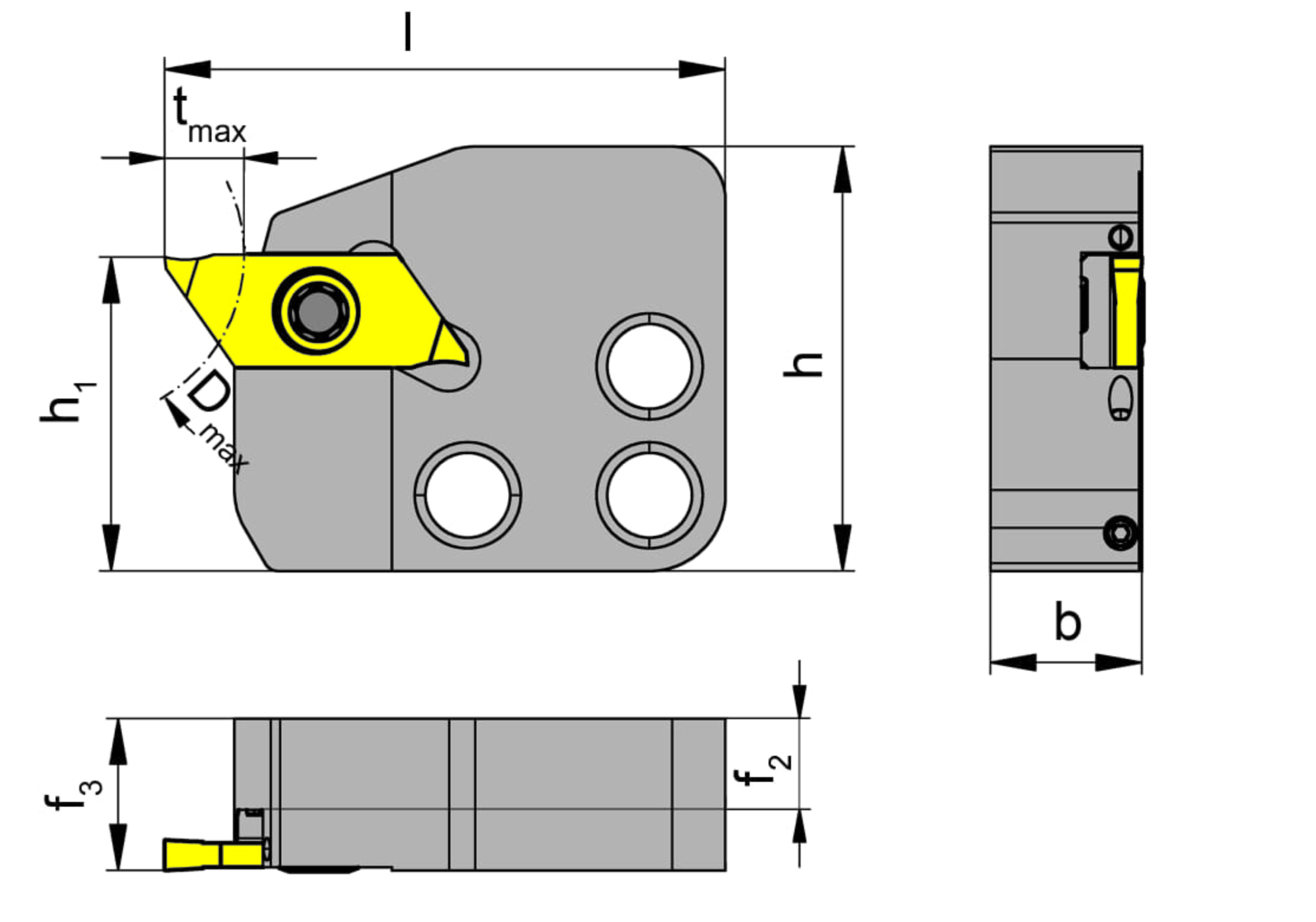

Adjustment dimension locating face insert (f2)

6 mm

Adjustment dimension of system cassette formula (f3)

f2+w

Clamping range maximum (Spannbereich)

4 mm

Clamping range minimum (Spannbereich)

0.5 mm

Peak height (h1)

20.7 mm

Maximum workpiece diameter (Dmax)

25 mm

Maximum depth of groove (tmax)

6 mm

Cassette thickness (b)

10 mm

Height (h)

28 mm

Total length (including cutting insert) (l)

37 mm

Downloads
RNK27408401404IK_20230116_085616226.STP	Download
RNK27408401404IK.DXF	Download
Download all files
