DSH.4.030.050.020 TS3K
DS Milling cutter
Material number DSH4030050020TS3K

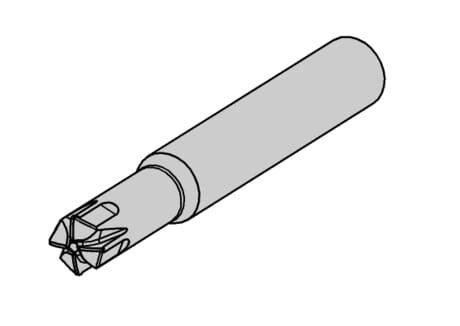

HORN DS Milling cutter DSH.4.030.050.020 TS3K for Milling
DIN_CCTMS
ZYL00600105

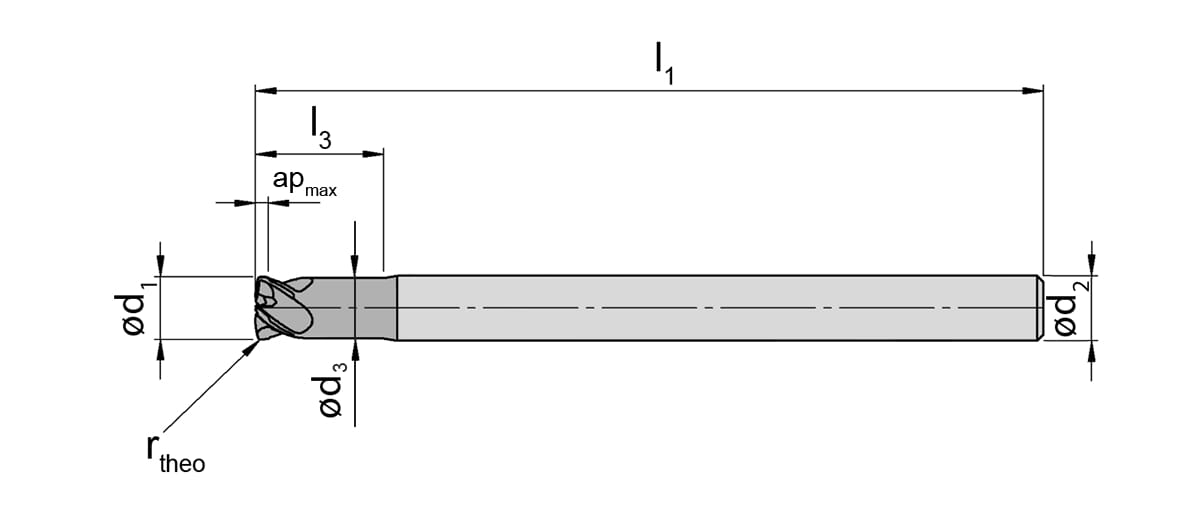

Theoretical corner radius, programmable corner radius (rtheo)
0.5
mm
shank-tapering-angle
40
°
Total length (l1)
50
mm
corner-radius-bottom-met
1.5
mm
corner-radius-top-met
0.3
mm
Maximum stepover (ap) (ap)
0.3
mm
Type (Ausführung)
HA
Neck diameter (d3)
2.7
mm
ISO_CCTMS
ZYL01F6000h$06
Number of teeth (Z)
4
St.
Cutting diameter (d1)
3
mm
Neck length (l3)
6
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSH4030050020.DXF | Download |
| DSH4030050020_20230112_211125344.STP | Download |
| Download all files | |
