R368320808_PICTO.TIF
R368320808_PICTO.TIF L368320811.TIF

L368.3208.11

Toolholders

ABSTECHEN_20210506_153854505.EPS AUSSEN_EINSTECHEN.EPS

Material number L368320811

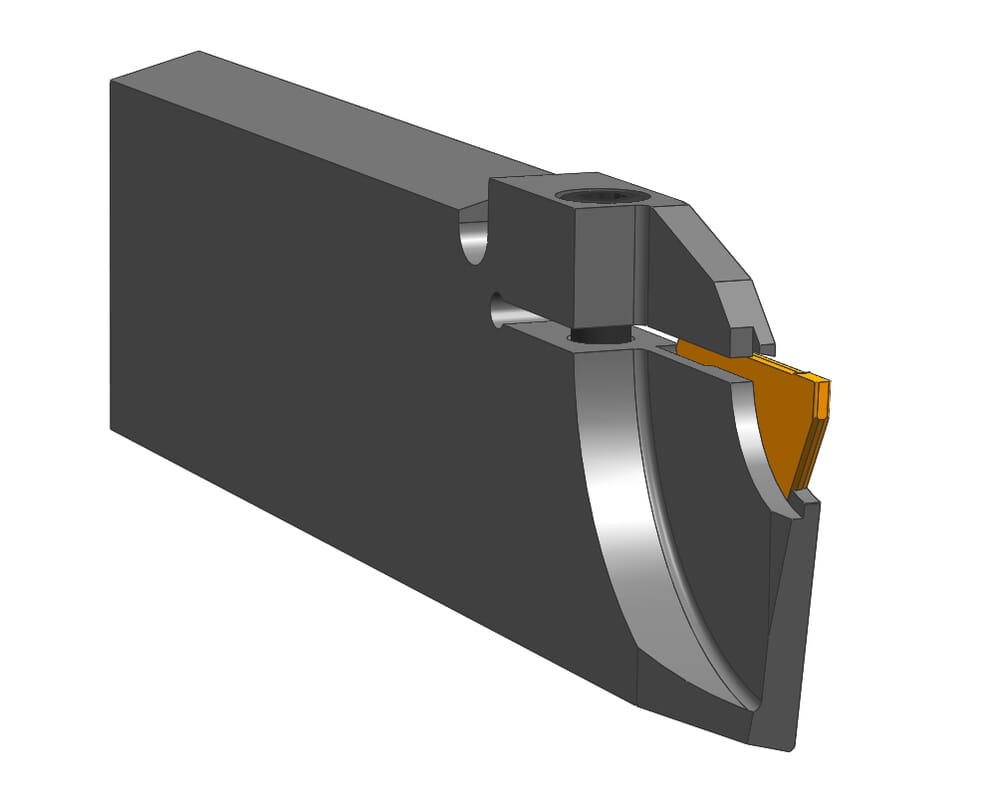

HORN Toolholders L368.3208.11 for Turning

Technical instructions

Width / thickness sword (b)
8 mm
Adjustment dimension (f1)
1.3 mm
Total length (including cutting insert) (l1)
110 mm
Head height (h)
32 mm
Maximum insertion depth (tmax)
8 mm
Peak height (h1)
24.8 mm
ISO_CCTWS
HORN-31211$000N$$$$$
DIN_CCTWS
HORN-31211000N
Katalog_CCTWS
31211N
DIN_CCTMS
PMU03200105
ISO_CCTMS
PMU01C0320$$$$
Downloads
L368320811_20211120_003219721.DXF Download
L368_3208_11_20171121_224208427.STP Download
Download all files
