LH100.2525.3.33.IK
Toolholder
Material number LH1002525333IK

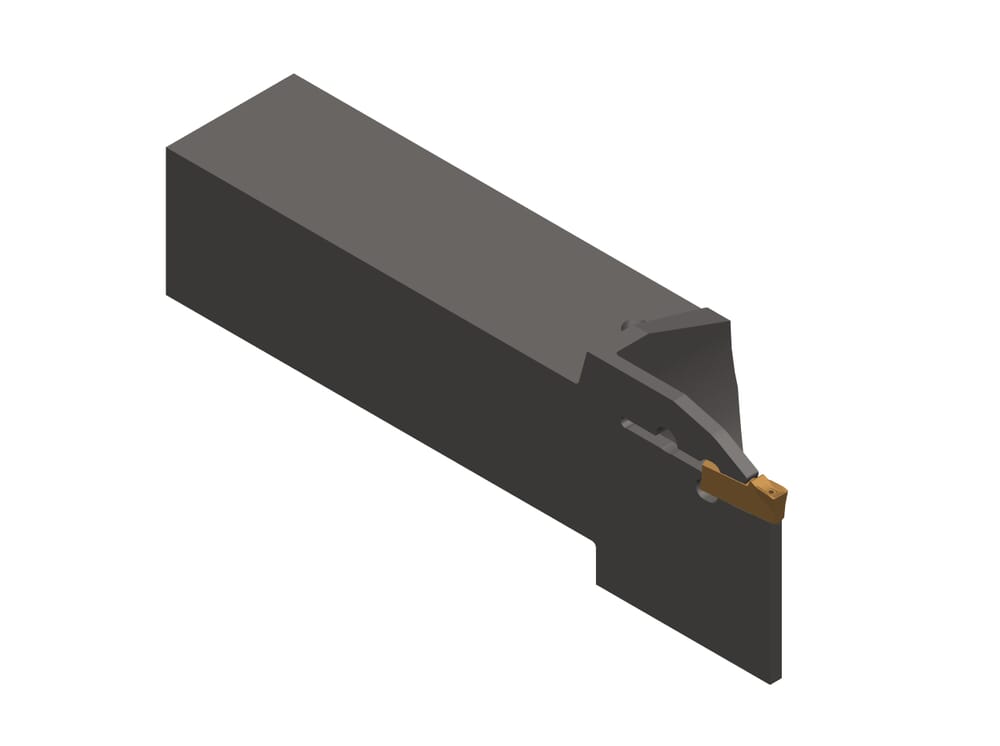

HORN Toolholder LH100.2525.3.33.IK for Turning
Maximum workpiece diameter (Dmax)
65
mm
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
100039
DIN_CCTWS
HORN-100030059N
ISO_CCTWS
HORN100030059N$$$$$
Head length top (including cutting edge) (l3)
38.5
mm
Head length (including cutting edge) (l2)
35
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
32
mm
Maximum insertion depth (tmax)
33
mm
Head height (HK)
38.6
mm
Shank height (h)
25
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
119
mm
Adjustment dimension cutting center (f1)
23.85
mm
Shank width (b)
25
mm
